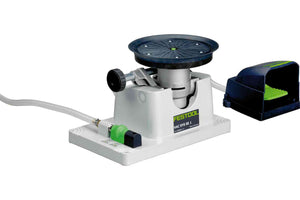

Clamping module for use with Vacuum Pump for suction-based, non-marring clamping. Save when buying as part of VAC SYS System or VAS SYS System SET.
Work more efficiently with the new VAC SYS System. With proven vacuum-based suction clamping, the VAC SYS provides a highly effective and ergonomic work platform for nearly any project. Effectively clamp material or a workpiece for effortless machining and finishing while protecting delicate surfaces from clamp damage. Each Clamping Module is equipped with a suction base that adheres to non-porous surfaces with a quick release valve, and can adapt to many surface sizes based on interchangeable Vacuum Pods (available separately).

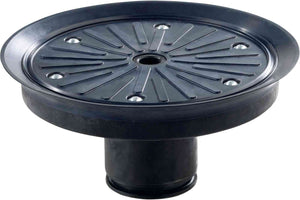

Vacuum Cup |
Dimensions (in mm) |
Holding Force 90° (Vertical) | Holding Force 0° (Horizontal) | Maximum Dimensions | Maximum Weight |
Round | D215 | 121.2 lbs (55 kg) | 198.4 lbs (90 kg) | 39-5/16"X39-5/16" (1.0X1.0 m) | 66.1 lbs (30 kg) |
Oblong* | 275X100 | 77.1 lbs (35 kg) | 116.8 lbs (53 kg) | 47-1/4"X15-11/16" (1.2X0.4 m) | 44.0 lbs (20 kg) |
Small* | 200X60 | 48.5 lbs (22 kg) | 66.1 lbs (30 kg) | 31-1/2"X7-15/16" (0.8X0.2 m) | 22.0 lbs (10 kg) |
Narrow* | 277X32 | 46.2 lbs (21kg) | 59.5 lbs (27 kg) | 47-1/4"X3-5/16" (1.2X0.08 m) | 17.6 lbs (8 kg) |
