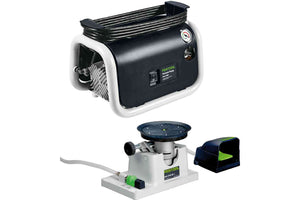

Festool 203149 VAC SYS System SET (201064&201065&580062)

Includes

• #201064 (Vacuum Pump) ships in box

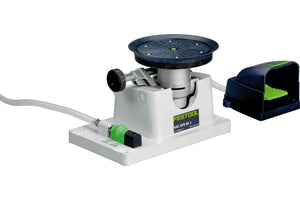

• #201065 (SE 1 Clamping Module / Round Vacuum Cup / Foot Valve) ships in SYS4 Classic

• #580062 (SE 2 Secondary Clamping Module / Oblong Vacuum Cup) ships in SYS4 Classic

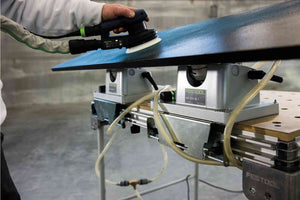

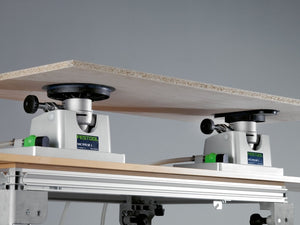

Work more efficiently with the new VAC SYS System. With proven vacuum-based suction clamping, the VAC SYS provides a highly effective and ergonomic work platform for nearly any project. Effectively clamp material or a workpiece for effortless machining and finishing while protecting delicate surfaces from clamp damage. Each Clamping Module is equipped with a suction base that adheres to non-porous surfaces with a quick release valve, and can adapt to many surface sizes based on interchangeable Vacuum Pods (available separately).

The future of clamping.

• Workpieces can be turned 360° and swivelled up to 90°
• Sensitive surfaces can be clamped without marring
• For mobile use – pump and clamping units are compact and portable
• Fast changing of workpiece clamping
• 4 different vacuum pod sizes available, can be changed without tools
• Simple ventilation of the vacuum pod using the foot valve
• Work ergonomically on your workpieces
• For use with milling, sanding, planing, sawing, smoothing, filling, and painting

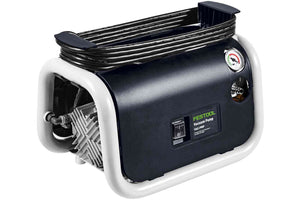

Specifications: Vacuum Pump

• Pressure: 150 mbar
• Pump Capacity: 2.06 CFM (3.5 m3/h)
• Power Consumption: 120 watts / 1 amp, 120 V AC
• Noise (Sound Level): 55 dBA
• Motor Speed: 3300 RPM
• Pump Speed: 3600 RPM
• Ambient Temperature Range: 41° - 104° F (5° - 40° C)
• Weight: 20.4 lbs (9.25 kg)

Specifications: Clamping Modules
