Festool 576239 MFK 700 Modular Trim Router SET
$659.00
Ships: Immediately
Precision and flexibility in a trim router
With its modular design and tool-less base changes, the MFK 700 can easily transform from a vertical to a horizontal position with a few simple steps. Trim laminate and edge band or rout grooves for inlays easily with the lightweight and maneuverable MFK 700. Packed with features, this trim router saves you money by allowing you to use bearing-less bits when used with the attachable base feeler bearing. 1/256" (1/10 mm) fine depth adjustments and exceptional dust extraction make this an ideal router for all of your light routing tasks.
Due to the nature of the horizontal base design, there is a limit to the bit size for use in this configuration. Do not use a bit with a cutting length greater than 5/8" (16 mm) and a shank length of 1-13/16" (46 mm). For greatest range of adjustment a 3/4" (19 mm) bit diameter is recommended.
Recommended Festool bit for trimming of edge banding with horizontal base: #491666

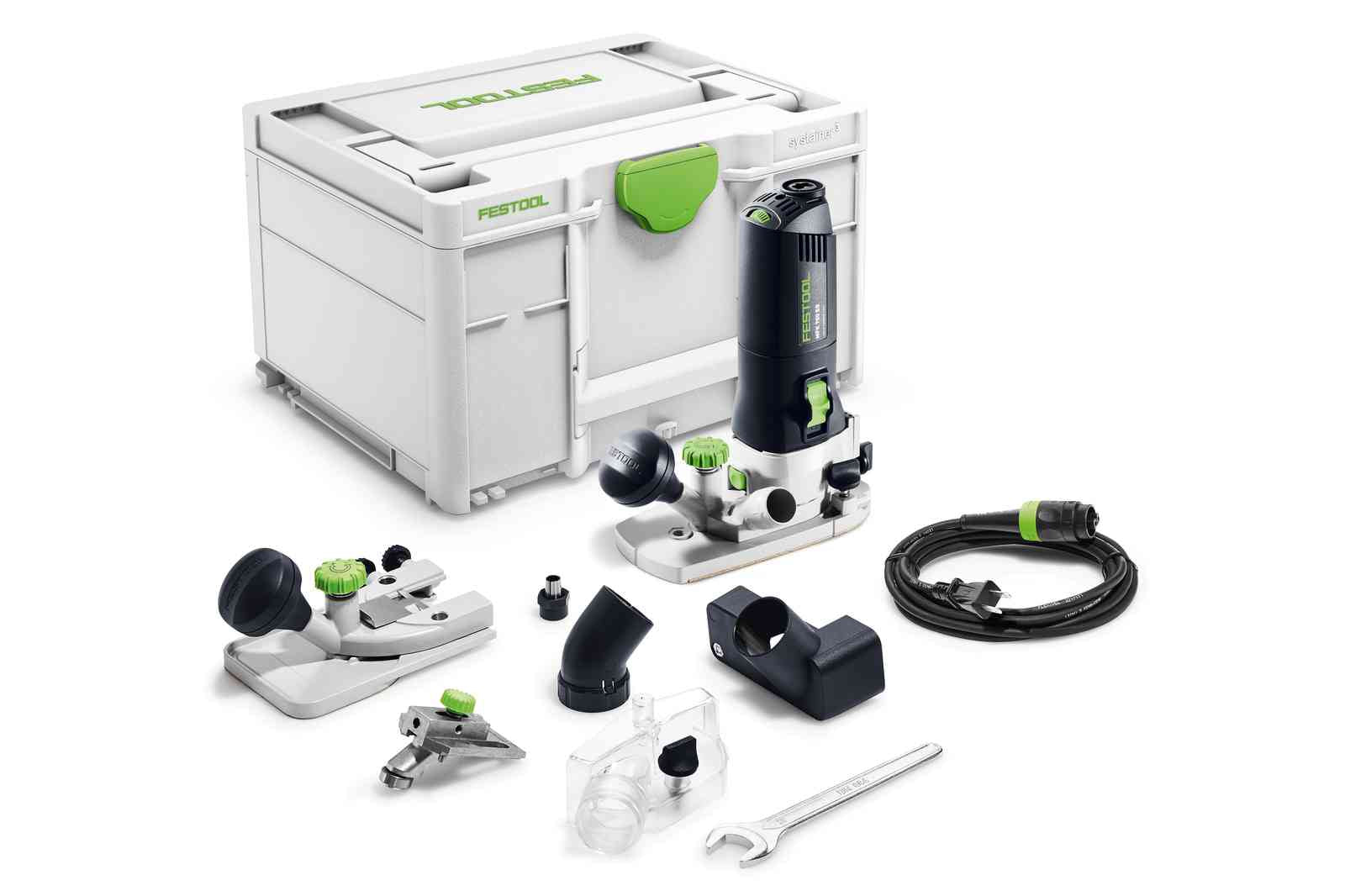

Includes
- 1.5-degree Horizontal base and feeler bearing set
- Vertical base
- Collet - 1/4"
- Collet - 8mm
- Dust extraction hood
- Open ended spanner
- Plug-it power cord
- Standard threaded base for U.S. guide bushing
- All packed in SysGen3 M187 Systainer
Specifications
- Routing depth fine adjustment range: 1/2" (14 mm)
- Max. cutter diameter: 1 1/4" (32 mm)
- Dust extraction connection dia.: 1 1/16" (27 mm)
- Weight: 5.07 lbs (2.3 kg)
- Collet dia.: 1/4"-5/16" (6-8 mm)
- Power consumption: 720 watt
- Cable length: 13.123 ft (4 m)
Features & Benefits
MMC Electronic & Variable Speed Control
Multi-Material Control (MMC) Electronics ensures the motor of the MFK 700 provides a constant spindle speed under load. The motor is also protected by the smooth start-up and temperature monitoring functions. Variable Speed Control allows you to control the speed of the spindle based on material, bit type and application.
720 Watt Motor
The MFK 700 Router is equipped with a powerful 720 Watt motor. That's just shy of one horsepower! With that much power, you can easily tackle most trimming, profiling and routing applications. The motor utilizes onboard thermal monitoring to protect against overload and soft start technology ensuring long service life.
One Wrench Collet
The MFK 700 Router features a one-wrench collet. A button locks the spindle in place allowing the collet to be loosened and tightened quickly with a single tool. No more busted knuckles! The MFK 700 includes a 1/4" collet. Optional 8mm collet also available.
Tool-Less Base System
Quickly and easily change between the horizontal and vertical bases supplied with the MFK 700. All components of the MFK 700 router set can be attached and removed without tools. Simply give the locking knob three turns to loosen or tighten the locking mechanism for the bases. Increase productivity with the modular design of the MFK 700 base system. One router motor, multiple routing applications.
Super Fine Micro-Adjustment
Most routing applications require very strict tolerances. The MFK 700 utilizes a super fine micro-adjustment knob allowing fine tuning of the cut depth with an accuracy of 1/10 of a millimeter! The super fine micro-adjustment knob is clearly labeled to show which direction the bit will move. Dual locking knobs prevent movement once the depth has been set.
Control
Being able to confidently control the MFK 700 is made possible by several unique features. The integrated guide handle on the vertical and horizontal bases provide comfort and control while routing. The guide handle also acts as one of two mechanisms for locking the micro-adjustable depth of cut.
Quad Center Line Reference Marks
As with all Festool routers, the MFK 700 has a center line indention on each side of the vertical base. This visual reference point allows you to align the center of the bit with the cut line. No more guessing where the center of the bit falls on your workpiece. Used in conjunction with the parallel edge guide, easily position the router.
Wide Bases
Both the horizontal and vertical bases for the MFK 700 offer a large, stable bearing surface. In conjunction with the guide handle, these features improve your ability to control and guide the router.
Dust Extraction Port
One of the fundamental design principles for any Festool power tool is dust extraction and once you have experienced working in a dust free environment you will quickly learn the benefits which include a healthy work space, the ability to see the workpiece better and less clean up time. The MFK 700 includes offers a variety of dust extraction options for every possible application.

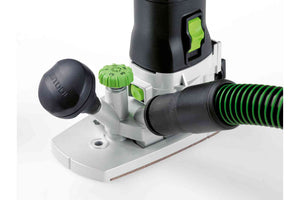

Base Plate And Threaded Insert
The MFK 700 features a base plate material that is designed to prevent scratches, glide easily and create a stable & flat bearing surface. The vertical base includes a threaded insert which accepts template guides adding to the overwhelming versatility of this router.
Parallel Edge Guide
Use the Parallel Edge Guide in unison with the MFK 700 to create straight, accurate trenches and grooves and with edge routing. The Parallel Edge Guide features a super fine micro-adjustment which allows fine tuning in increments of 1/10 of a millimeter! The supplied dust extraction shroud on the Parallel Edge Guide ensures effective particle removal.
Swivel Dust Extraction Connector
Festool engineers paid attention to every detail when designing the MFK 700. The standard swiveling dust extraction connector is no exception. The swivel connector allows the dust extractor hose to move freely and prevents binding.
Auxiliary Handle
Being able to confidentially control the MFK 700 is made possible by several unique features. The integrated guide handle on the vertical and horizontal bases provide comfort and control while routing. The guide handle also acts as one of two mechanisms for locking the micro-adjustable depth of cut.
Wide Bases
Both the horizontal and vertical bases for the MFK 700 offer a large, stable bearing surface. In conjunction with the guide handle, these features improve your ability to control and guide the router.
Super Fine Micro-Adjustment
Most routing applications require very strict tolerances. The MFK 700 utilizes a super fine micro-adjustment knob allowing fine tuning of the cut depth with an accuracy of 1/10 of a millimeter! The super fine micro-adjustment knob is clearly labeled to show which direction the bit will move. Dual locking knobs prevent movement once the depth has been set.
Sliding Dust Cover
The horizontal base unit of the MFK 700 has a Sliding Dust Cover. The cover prevents dust from exiting the top of the router when not using the supplied Dust Extraction Hood.
Horizontal Base
The horizontal base has a 1.5-degree offset from the axis of the spindle. The purpose of this angled design is to eliminate the need for additional filing or sanding when trimming edge banding. Greatly improve accuracy and proficiency with the time saving feature. 0-degree horizontal base is also available separately.
Dust Extraction Hood
One of the fundamental design principles for any Festool power tool is dust extraction and once you have experienced working in a dust free environment you will quickly learn the benefits which include a healthy work space, the ability to see the workpiece better and less clean up time. The MFK 700 includes offers a variety of dust extraction options for every possible application.
Systainer Carrying Case
Nearly every tool manufactured by Festool comes in a durable, modular Systainer carrying case. The MFK 700 Set will be supplied in a Systainer #2 which accommodates the tool and all available accessories. Systainers protect your tool from damage in transit and are stackable. Look like a professional when you walk onto the jobsite.
Tool-Less Base System
Quickly and easily change between the horizontal and vertical bases supplied with the MFK 700. All components of the MFK 700 router set can be attached and removed without tools. Simply give the locking knob three turns to loosen or tighten the locking mechanism for the bases. Increase productivity with the modular design of the MFK 700 base system. One router motor, multiple routing applications.
Sensor Bearing Guide
Use the Sensor Bearing Guide, a standard component of the horizontal base set, to aid in guiding the router around the workpiece. The smooth, controlled movement of the Sensor Bearing Guide will ensure that you end up with a perfect cut even around corners or irregular shapes. By removing the bearing from the bit, the service life of the bit and bearing are increased as a result of less heat and friction.
Plug-It Power Cord
Save time with the patented Plug-It power cord on the MFK 700 router. Plug-It allows you to connect or disconnect the power cord with a single insert and twist motion. Quickly move the power and dust extraction connectors from one tool to another. The Plug-It also makes storing your tool in its systainer carrying case easier.
